In modern software development, the need for robust and efficient CI/CD (Continuous Integration/Continuous Deployment) pipelines is more crucial than ever. AWS offers a suite of developer tools that streamline and automate the software release process. This article delves into three key AWS services: CodePipeline, CodeDeploy, and CodeCommit, providing a detailed overview of their functionalities and how they can be integrated to form a powerful CI/CD pipeline.
AWS Developer Tools are a set of services designed to help developers and IT operations professionals to reliably deliver software. These services support DevOps practices by automating and managing the software release process. The core services include AWS CodePipeline, AWS CodeDeploy, and AWS CodeCommit.
AWS CodePipeline
Overview
AWS CodePipeline is a continuous delivery service that enables you to model, visualize, and automate the steps required to release your software. With CodePipeline, you can define your pipeline with a series of stages, such as source, build, test, and deploy, ensuring that your code moves smoothly from development to production.
Key Features
Automated Workflow: Automates the build, test, and deploy phases of your release process.
Integration with Third-Party Services: Easily integrates with GitHub, Jenkins, and other third-party tools.
Parallel Execution: Allows parallel execution of steps to speed up the release process.
Customizable Pipelines: Define custom workflows to fit your unique development process.
Monitoring and Notifications: Provides detailed logging and integrates with AWS CloudWatch and SNS for monitoring and notifications.
Getting Started
Create a Pipeline:
Add Source Stage:
Choose a source provider (e.g., AWS CodeCommit, GitHub).
Configure the source details and connect your repository.
Add Build Stage:
Select a build provider (e.g., AWS CodeBuild).
Configure the build project and specify the build specifications.
Add Deploy Stage:
Choose a deployment provider (e.g., AWS CodeDeploy).
Configure the deployment settings and select the target environment.
Review and Create:
Real-Time Example
Imagine you have a web application stored in a CodeCommit repository. Hereโs how you can set up a CodePipeline:
version: 1.0
stages:
- name: Source
actions:
- name: SourceCode
actionTypeId:
category: Source
owner: AWS
provider: CodeCommit
version: 1
outputArtifacts:
- name: SourceOutput
configuration:
RepositoryName: "MyWebAppRepo"
BranchName: "main"
- name: Build
actions:
- name: Build
actionTypeId:
category: Build
owner: AWS
provider: CodeBuild
version: 1
inputArtifacts:
- name: SourceOutput
outputArtifacts:
- name: BuildOutput
configuration:
ProjectName: "MyWebAppBuildProject"
- name: Deploy
actions:
- name: Deploy
actionTypeId:
category: Deploy
owner: AWS
provider: CodeDeploy
version: 1
inputArtifacts:
- name: BuildOutput
configuration:
ApplicationName: "MyWebApp"
DeploymentGroupName: "MyWebAppDeploymentGroup"
AWS CodeDeploy
Overview
AWS CodeDeploy automates the process of deploying applications to various compute services, such as Amazon EC2, AWS Fargate, AWS Lambda, and on-premises servers. It helps you release new features rapidly, avoid downtime during deployment, and handle the complexity of updating your applications.
Key Features
Automated Deployments: Automates code deployments to any instance, including Amazon EC2, on-premises servers, and Lambda functions.
Minimized Downtime: Deploys updates with minimal downtime and allows for rollback if necessary.
Blue/Green and Rolling Deployments: Supports various deployment strategies, including blue/green and rolling deployments.
Monitoring and Alerts: Integrates with Amazon CloudWatch and AWS CloudTrail for monitoring and alerting.
Getting Started
Create a CodeDeploy Application:
Create a Deployment Group:
Define the deployment group by specifying the target instances or environments.
Configure the deployment settings, including the deployment type and triggers.
Configure the AppSpec File:
- Define the deployment instructions in the
appspec.yml file.
version: 0.0
os: linux
files:
- source: /src
destination: /dest
hooks:
BeforeInstall:
- location: scripts/before_install.sh
timeout: 300
runas: root
AfterInstall:
- location: scripts/after_install.sh
timeout: 300
runas: root
ApplicationStart:
- location: scripts/start_server.sh
timeout: 300
runas: root
ValidateService:
- location: scripts/validate_service.sh
timeout: 300
runas: root
Deploy the Application:
Create a deployment by specifying the application, deployment group, and revision.
Monitor the deployment progress and logs in the CodeDeploy console.
Real-Time Example
Suppose you have a web application running on an EC2 instance. Hereโs how to set up CodeDeploy:
Create Application and Deployment Group:
Define AppSpec File:
- Create an
appspec.yml file with the deployment instructions.
Create Deployment:
- Use the AWS CLI or console to create a deployment:
aws deploy create-deployment \
--application-name MyWebApp \
--deployment-group-name MyWebAppDeploymentGroup \
--s3-location bucket=mybucket,key=MyWebApp.zip,bundleType=zip
AWS CodeCommit
Overview
AWS CodeCommit is a fully managed source control service that makes it easy for teams to host secure and scalable Git repositories. CodeCommit eliminates the need to operate your own source control system or worry about scaling its infrastructure.
Key Features
Fully Managed: No need to manage hardware or software.
Secure: Automatically encrypts your files in transit and at rest.
Highly Available: Redundant and durable, ensuring your repositories are always available.
Integration with AWS Services: Integrates seamlessly with other AWS services, including CodePipeline, CodeBuild, and CodeDeploy.
Scalable: Handles repositories of any size with high performance.
Getting Started
Create a Repository:
Clone the Repository:
- Clone the repository to your local machine using the provided URL.
git clone https://git-codecommit.us-west-2.amazonaws.com/v1/repos/MyRepo
Add and Commit Code:
git add .
git commit -m "Initial commit"
git push origin main
Real-Time Example
Suppose you are starting a new project. Hereโs how to set up a CodeCommit repository:
Create Repository:
- Create a repository named "MyNewProject".
Clone Repository:
- Clone the repository to your local machine.
Add Code:
Integrate with CodePipeline:
source stage in your CodePipeline to automate the build and deploy process.

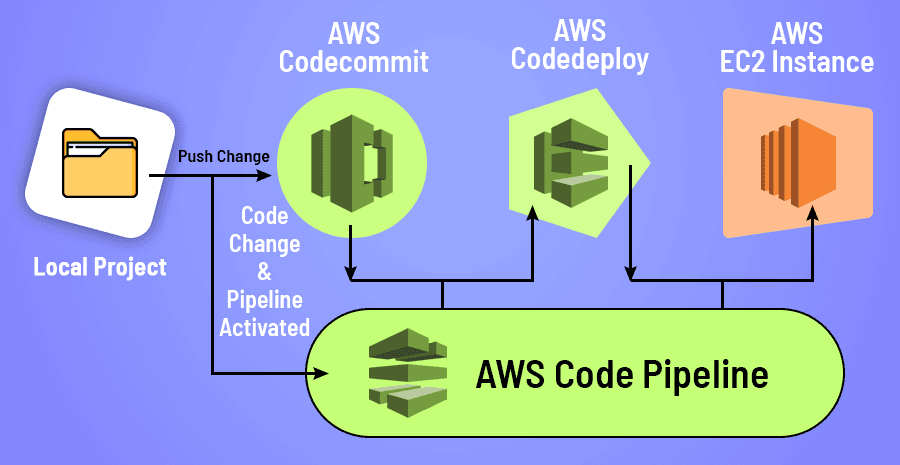

Integrating CodePipeline, CodeDeploy, and CodeCommit
Combining these three services provides a powerful and automated CI/CD pipeline. Hereโs an example of how they can be integrated:
Source Code Management:
- Use CodeCommit to host your Git repositories.
Automated Build and Test:
- Set up a CodePipeline to automate the build and test stages using CodeBuild.
Automated Deployment:
- Integrate CodeDeploy with CodePipeline to automatically deploy the application to your target environments.
Example Pipeline Configuration
Hereโs a YAML configuration for an AWS CodePipeline that integrates CodeCommit, CodeBuild, and CodeDeploy:
version: 1.0
stages:
- name: Source
actions:
- name: SourceCode
actionTypeId:
category: Source
owner: AWS
provider: CodeCommit
version: 1
outputArtifacts:
- name: SourceOutput
configuration:
RepositoryName: "MyRepo"
BranchName: "main"
- name: Build
actions:
- name: Build
actionTypeId:
category: Build
owner: AWS
provider: CodeBuild
version: 1
inputArtifacts:
- name: SourceOutput
outputArtifacts:
- name: BuildOutput
configuration:
ProjectName: "MyBuildProject"
- name: Deploy
actions:
- name: Deploy
actionTypeId:
category: Deploy
owner: AWS
provider: CodeDeploy
version: 1
inputArtifacts:
- name: BuildOutput
configuration:
ApplicationName: "MyWebApp"
DeploymentGroupName: "MyWebAppDeploymentGroup"
Conclusion
AWS CodePipeline, CodeDeploy, and CodeCommit are powerful tools that enable you to automate the entire software release process. By leveraging these services, you can build a robust CI/CD pipeline that improves your development workflow, reduces manual effort, and ensures consistent, high-quality releases.
Integrating these tools provides a seamless and efficient way to manage your software lifecycle, from source code management to deployment. Whether you are a small startup or a large enterprise, these AWS developer tools can help you achieve faster delivery, improved quality, and enhanced security in your software development process.
Feel free to share this guide with your team or on your blog to help others understand and implement AWS CodePipeline, CodeDeploy, and CodeCommit effectively!
